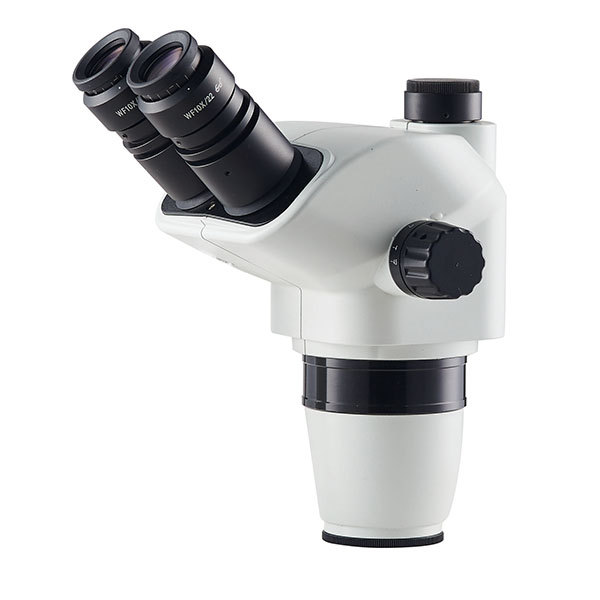

SZ6745TRH trinocular zoom body

SKU: SZ6745TRH Category: Accessories

Description

Microscope head
It is located at the upper portion of microscope. The head portion of microscope is also known as the Body tube.

Microscope head application:
The head portion or body tube of microscope connects the eyepiece to the objective lenses.

If you were to open the body of the microscope you would find a mirror or prism depending on the type and quality of the microscope. The prism or mirror is used to reflect the light and reorient the image by making it appear right side up.
In compound microscopes with two eye pieces there are prisms contained in the body that will also split the beam of light to enable you to view the image through both eye pieces.

Trinocular zoom body
trinocular zoom body is the main body of a stereo microscope, with continuouszooming function and observe with two eyepieces
the third ocular can be configured with different photo eyepiece,or combined with other interface to connect to different webcam,cameral and so on,
This body tube usually be placed on microscope stand

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body:
Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective: 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
