scale with crossline reticle eyepiece graticule horizontal micrometer

NE7 X10mm100div
NE7N X10mm100div square10mm
NE77 X5mm100div
NE777 X0.5inch

Category:

Description

Scale with crossline eyepiece reticle graticule micrometer  NE7 NE7N NE77 NE777

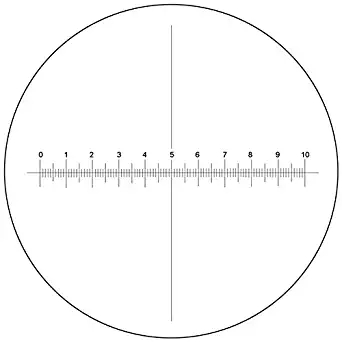

Horizontal scale micrometer with vertical cross line

Horizontal micrometer overall length: 10mm5mm0.5inch

Divisions:100div

Measuring length of specimen or distance between points on a variety of different shaped objects.alignment of reticle with edges

Eyepiece Measurement Reticles and Stage Micrometers:

Allow accurate measurements with compound and stereo microscopes when properly calibrated with a stage micrometer. Stereo zoom models with detent stops at different magnifications are recommended for consistent measurements using a zoom microscope.



scale locate scale length Div QTY DIV each Diameter Note

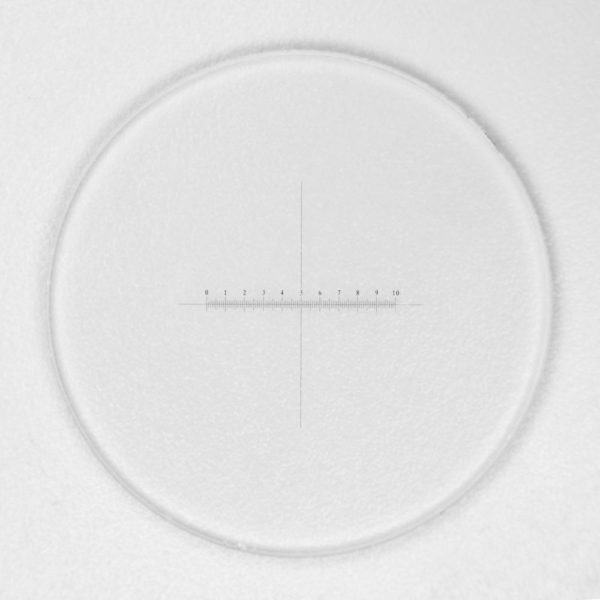

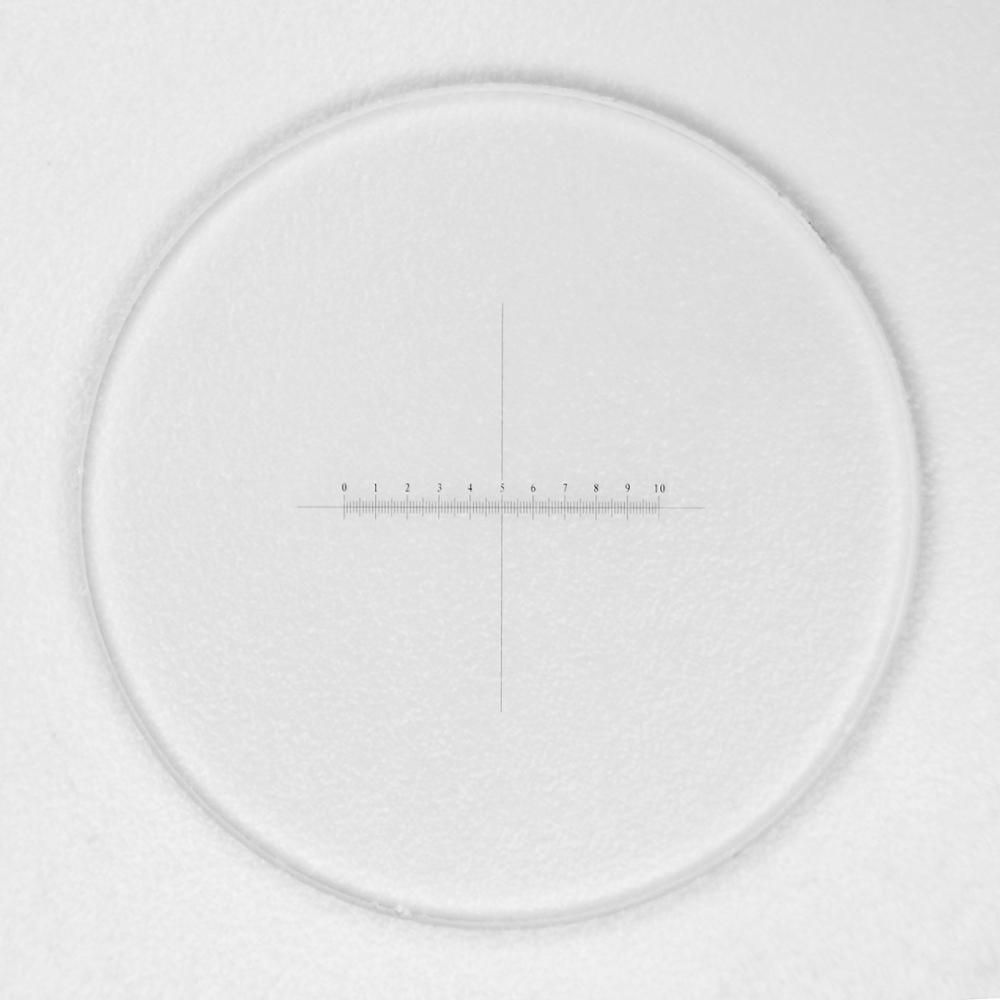

Xaxis 10mm 100div 0.1mm D19/20/21/22/23/24mm
Xaxis 12.7mm 100div 0.127mm
Xaxis Yaxis 10mm 100div 0.1mm
Xaxis Yaxis 12.7mm 100div 0.127mm

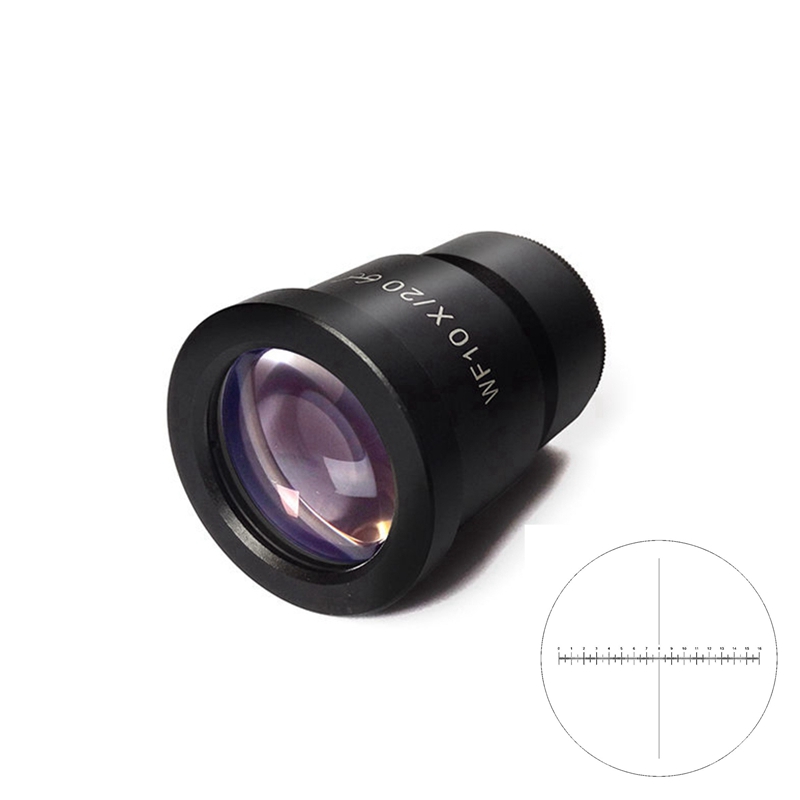

Eyepiece scale reticle cross line measure micrometer calibration

The reticle is usually installed on the right eyepiece focal plane of the telescope. It is a thin surface of a polar surface that engraved the thin glass. The thin glass also participates in the imaging in theory, prolongs the focal length of the objective lens, and will have more or less influence on the length of the right eyepiece.

Verifiable resolution and optical transfer function

Reticle high requirements for cleanliness, any tiny dust could have large black spots in the observation, and the precision of the installation position of the reticle is extremely demanding, therefore, do not try to disassemble, if removed, must follow the original restoration.
