Eyepiece 15X magnification high eye point wide field ocular lens mount 30mm for stereo microscope

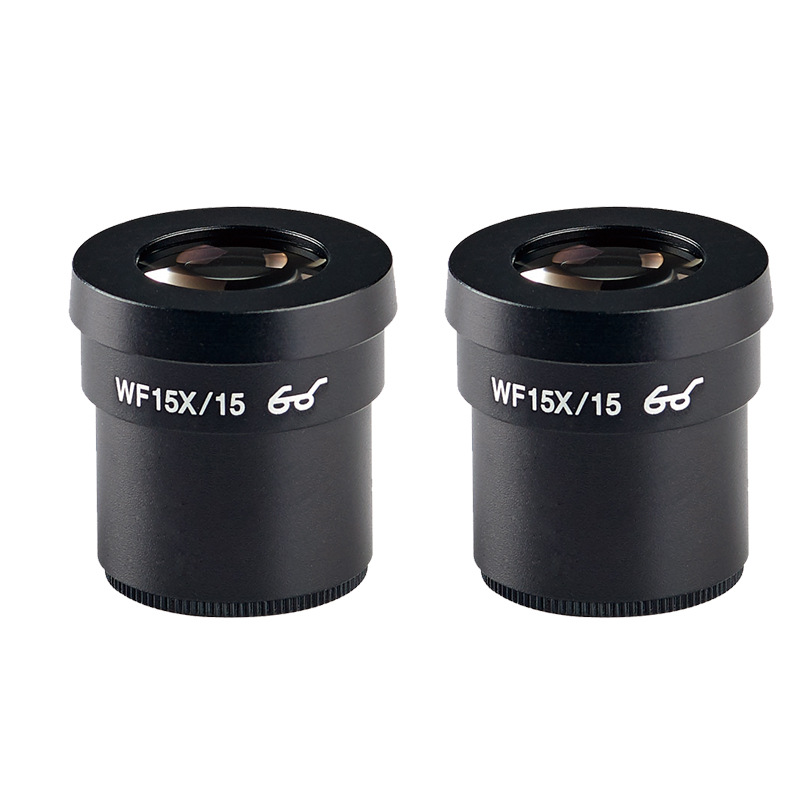

HWF15X/15 eyepiece, high eye point wide field



Microscope Eyepiece ocular lenses that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10×. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. through which the real image forms an upright and magnified virtual image.
Microscope magnification is the microscope’s ability to enlarge an image of an object through a series of lenses to a size multiple times larger than the actual size of the object.
Microscope Magnification = Eyepiece Magnification X Objective Magnification

High eye point Wide Field WF15X Eyepiece for Stereo Microscope
Mounting Size 30.5 mm withour with Rubber Eye Cups

High Eye Point Eyepiece For Stereo Microscope
Material:optical glass + metal
With the rubber eye guards cups
Magnification: WF15X
Field of View: 15mm
Mounting Size (in diameter): 30.5 mm or 30mm
Suit Microscope: stereo microscope
Features: wide field, optical lens

Eyepiece is an integral part of the microscope. It is used to observe the optical system into an image of the visual optics. It is usually a combination of several lenses made with a larger field of view and perspectives magnification. Generally divided into Huygens eyepieces, wide-angle eyepieces, and other flat-field eyepieces. The function is to eliminate aberration, so that the image will be more clear.
eye piece HWF15X15 high eye piece wide field
