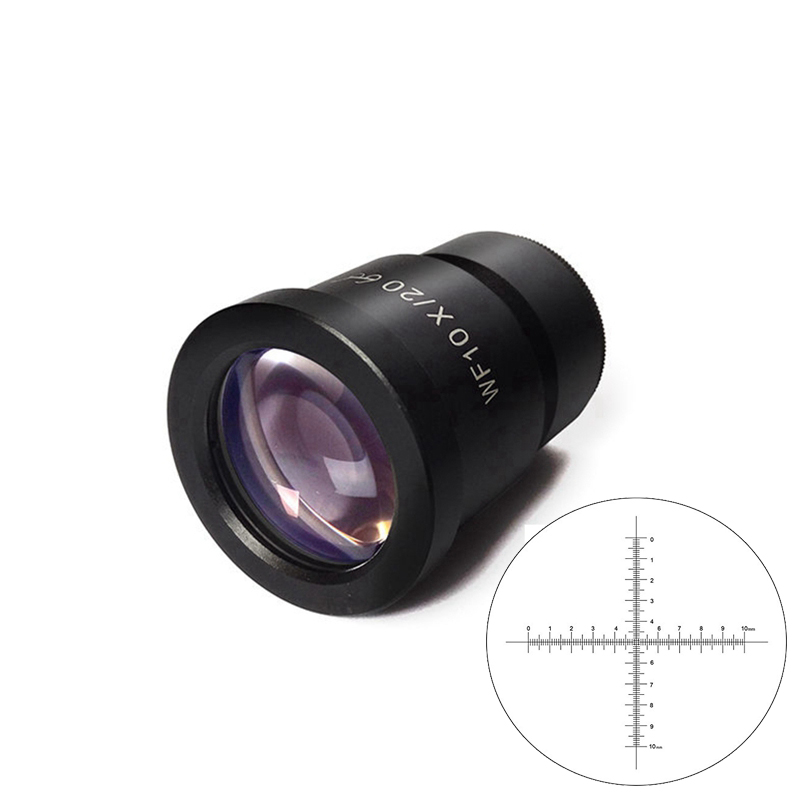

Dual axis Scale reticle micrometer graticule crossed scale

dual axis scale
NE17
NE18
NE72
NE70

Category:

Description

crossed scale eyepiece reticle  measure micrometer calibration

The reticle is usually installed on the right eyepiece focal plane of the telescope. It is a thin surface of a polar surface that engraved the thin glass. The thin glass also participates in the imaging in theory, prolongs the focal length of the objective lens, and will have more or less influence on the length of the right eyepiece.

Verifiable resolution and optical transfer function

Reticle high requirements for cleanliness, any tiny dust could have large black spots in the observation, and the precision of the installation position of the reticle is extremely demanding, therefore, do not try to disassemble, if removed, must follow the original restoration.



scale locate scale length Div QTY DIV each Diameter Note
Xaxis 10mm 100div 0.1mm D19/20/21/22/23/24mm
Xaxis 12.7mm 100div 0.127mm

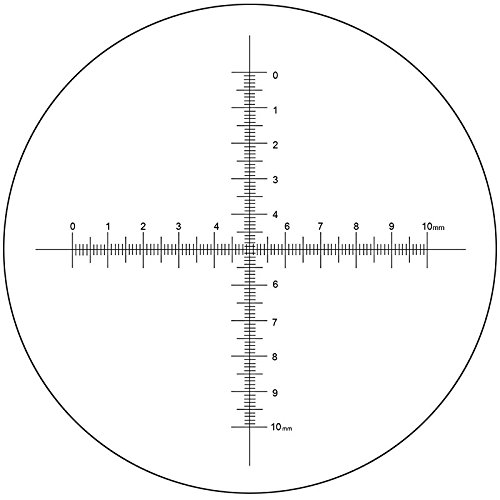

Xaxis Yaxis 10mm 100div 0.1mm
Xaxis Yaxis 12.7mm 100div 0.127mm
