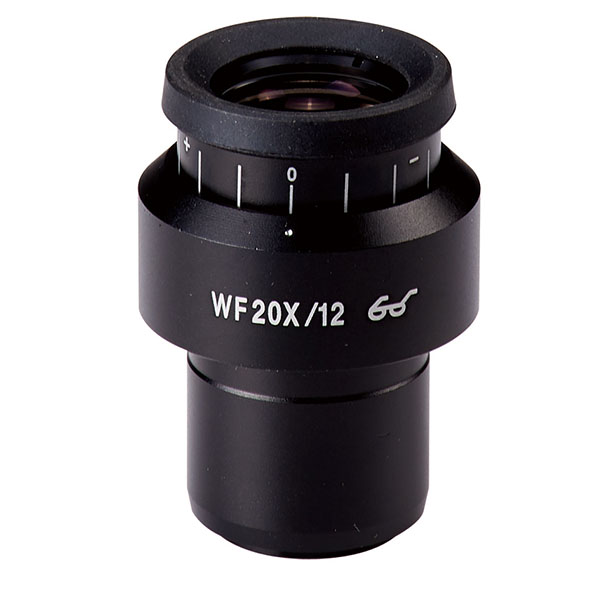

Diopter adjustment eyepiece 20X focusing high eye point wide field stereo miroscope focusable lens

DHWF20X/12mm diopter adjustment

Category: Ocular eyepiece

Description

Microscope Eyepiece ocular lenses that a person uses to view a specimen. Most dissecting microscopes have two ocular lenses set at a magnification of 10×. However, you can increase the magnification of a stereo microscope simply by upgrading the ocular lenses. through which the real image forms an upright and magnified virtual image.
Microscope magnification is the microscope’s ability to enlarge an image of an object through a series of lenses to a size multiple times larger than the actual size of the object.
Microscope Magnification = Eyepiece Magnification X Objective Magnification

Diopter Adjustment Eyepiece 20X High Eyepoint Wide View 12mm with Mounting Size 30 mm for Stereo Microscope
Specification:
Magnification: 20x
Field of view : 12mm
Mounting size: 30 mm
Featres:diopter adjustment,High Eyepoint and wide angle lens
Diopter adjustable Ideal for stereo microscope
Eyepiece is an integral part of the microscope. It is used to observe the optical system into an image of the visual optics. It is usually a combination of several lenses made with a larger field of view and perspectives magnification. Generally divided into Huygens eyepieces, wide-angle eyepieces, and other flat-field eyepieces. The function is to eliminate aberration, so that the image will be more clear.

diopter adjustment eye piece 20X wide field high eye point stereo microscope lens
