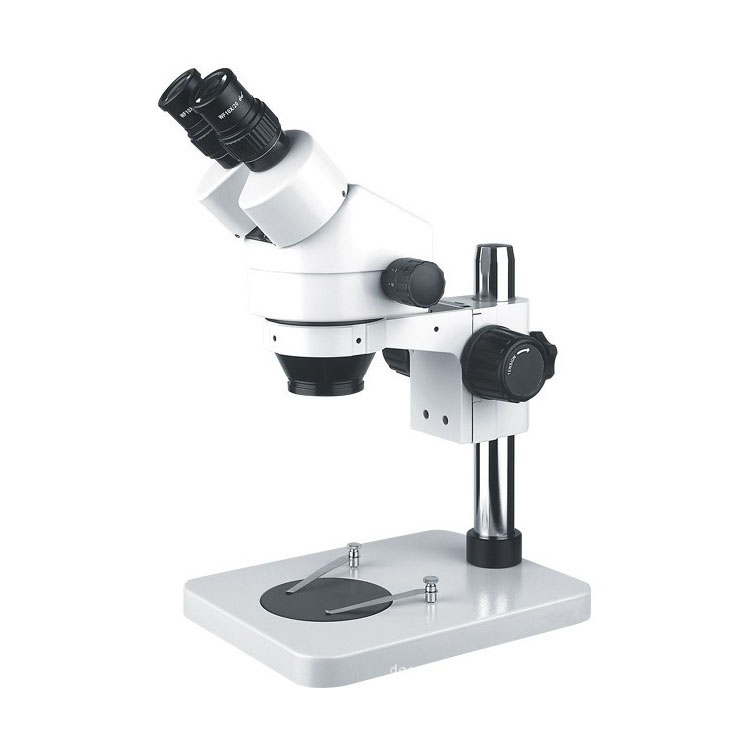

7X45X zoom stereo microscope binocular eyepiece boom stand stage plate clips

ZST745B1, zoom stereo microscope

Description

7X45X zoom stereo microscope binocular eyepiece boom stand stage plate clips
Magnification:7X-45X
High eye point wide field view HWF10X/20mm
High eye point wide field view HWF20X/10mm
Zoom objective  0.7X-4.5X
Viewing head: binocular view head, tilt 45degree,rotation 360degree, Pupil distance 54-76mm adjustable, Bilateral visibility adjustment/diopter regulation
Work distance: 100mm
Auxiliary lens: 0.5X/165MM, 1.5X/45MM, 2X/30MM
Focus bracket: focusing knob,
Base: 380*250*22mm

stereo zoom microscope
the zoom-stereo microscope optical structure of common primary objective lens. The two beams after imaging the object are separated by two sets of intermediate objective lenses-the zoom lens, and they form an integrated viewing angle and pass through their respective eyepieces For imaging, its magnification change is obtained by changing the distance between the intermediate lens groups.
stereo zoom microscope Features
1. The left and right beams in the binocular tube are not parallel, but have a certain included angle-the body angle of view (generally 12 ° ~ 15 °), so the imaging has a three-dimensional stereoscopic impression;
2. The image is upright, easy to operate and dissect, because the prism under the eyepiece turns the image upside down;
3. Although the magnification can be up to about 200 times, its working distance is very long. After adding an additional lens in front of the objective lens, the working distance can reach 200mm;
4. The focal depth is large, which is convenient for observing the whole layer of the object under inspection. At low magnification, the focal depth can reach 5.6mm;
5. Large field diameter, up to about 65.7mm at low magnification.
stereo zoom microscope application
Suitable for electronic circuit boards, chip packaging, jewelry identification, research phase analysis, micro-precision quality control, assembly, public security, bank trace comparison, teaching demonstration, clinical surgery samples, agricultural selection, textile inspection, breeding industry selection Pathological analysis. observation, assembly and inspection of micro-components and integrated circuits on the production lines of PCB, LCD and other industries, as well as the inspection of precision parts for mechanical finishing.
Meet the requirements of high precision in modern biology, medicine, scientific research, modern electronic industry online detection and other science and technology industries.

stereo microscope binocular boom stand
